Monitoring the Student Integration Flows Using Azure Application Insights

Administrators can view and monitor the integration details of Anthology Student and Anthology Reach Integration Flows using Azure Application Insights. Some of the details of the Student Integration Flows that can be monitored using the Azure Application Insights include:

Details of the Flow and its run details.
Flow execution statuses
Flow execution times for Integration related activities

Viewing the Application Insights for Student Integration Flows

This topic provides information on the query snippets and the steps to generate and view application insights for the student integration flows.

Query Snippets for Generating Application Insights for the Student Integration Flows

The Application Insights for the Student Integration flows can be generated using the following query snippets for each type of Flow:

Query Snippet for the Anthology Student to Anthology Reach (CNS-CNE) Flows

Copy

let IntegrationStatusMap = dynamic(
    {
    "175490000": "Success",
    "175490001": "Failed",
    "175490002": "Pending",
    "175490003": "Success (with warning)"
    });
union traces
| where message startswith "Integration Log added for"
| extend
    CorrelationId = tostring(customDimensions['prop__CorrelationId']),
    EntityName = tostring(customDimensions['prop__EntityName']),
    EntityId = tostring(customDimensions['prop__EntityId']),
    IntegrationStatus = IntegrationStatusMap[tostring(customDimensions['prop__IntegrationStatus'])],
    OperationType = tostring(customDimensions['prop__OperationType']),
    IntegrationCategory = tostring(customDimensions['prop__IntegrationCategory']),
    IntegrationSubCategory = tostring(customDimensions['prop__IntegrationSubCategory']),
    StartDateTime = todatetime(customDimensions['prop__StartDateTime']),
    EndDateTime = todatetime(customDimensions['prop__EndDateTime'])
| project
    CorrelationId,
    EntityName,
    EntityId,
    IntegrationStatus,
    IntegrationCategory,
    IntegrationSubCategory,
    OperationType,
    StartDateTime,
    EndDateTime,
    timeTaken = datetime_diff('millisecond', EndDateTime, StartDateTime)
| where IntegrationCategory == 'Reach-Student Integration'
| summarize
    RunCount = count(),
    SuccessCount = countif(IntegrationStatus == 'Success'),
    FailedCount = countif(IntegrationStatus == 'Failed'),
    WarningCount = countif(IntegrationStatus == 'Success (with warning)'),
    PendingCount = countif(IntegrationStatus == ''),
    SuccessRate = (countif(IntegrationStatus in('Success', 'Success (with warning)')) * 100) / count(),
    AvgRunTime = avg(timeTaken)
    by EntityName

Query Snippet for the Anthology Reach to Anthology Student (CNE-CNS) Flows

Copy

let IntegrationStatusMap = dynamic(
    {
    "175490000": "Success",
    "175490001": "Failed",
    "175490002": "Pending",
    "175490003": "Success (with warning)"
    });
union traces
| where message startswith "FLOWEND - Executed Flow with FlowKeyName "
| extend
    CorrelationId = tostring(customDimensions['prop__CorrelationId']),
    FlowKey = tostring(customDimensions['prop__FlowKey']),
    startTime = todatetime(customDimensions['prop__startTime']),
    endTime = todatetime(customDimensions['prop__endTime']),
    status = tostring(customDimensions['prop__status'])
| project
    CorrelationId,
    FlowKey,
    startTime,
    endTime,
    status,
    datetime_diff('millisecond', endTime, startTime)
| join kind = leftouter (
    union traces
    | where message startswith "Integration Log added for"
    | extend
        CorrelationId = tostring(customDimensions['prop__CorrelationId']),
        EntityName = tostring(customDimensions['prop__EntityName']),
        EntityId = tostring(customDimensions['prop__EntityId']),
        IntegrationStatus = IntegrationStatusMap[tostring(customDimensions['prop__IntegrationStatus'])],
        OperationType = tostring(customDimensions['prop__OperationType']),
        IntegrationCategory = tostring(customDimensions['prop__IntegrationCategory']),
        IntegrationSubCategory = tostring(customDimensions['prop__IntegrationSubCategory']),
        StartDateTime = todatetime(customDimensions['prop__StartDateTime']),
        EndDateTime = todatetime(customDimensions['prop__EndDateTime'])
    | project
        CorrelationId,
        EntityName,
        EntityId,
        IntegrationStatus,
        IntegrationCategory,
        IntegrationSubCategory,
        OperationType,
        StartDateTime,
        EndDateTime,
        timeTaken = datetime_diff('millisecond', EndDateTime, StartDateTime)
    )
    on CorrelationId
| summarize
    RunCount = count(),
    SuccessCount = countif(IntegrationStatus == 'Success'),
    FailedCount = countif(IntegrationStatus == 'Failed'),
    WarningCount = countif(IntegrationStatus == 'Success (with warning)'),
    PendingCount = countif(IntegrationStatus == ''),
    SuccessRate = (countif(IntegrationStatus in('Success','Success (with warning)')) /count())*100,
    AvgRunTime = avg(timeTaken)
    by FlowKey

Query Snippet for the Pull Based Student Integration Flows

Copy

let IntegrationStatusMap = dynamic(
    {
    "175490000": "Success",
    "175490001": "Failed",
    "175490002": "Pending",
    "175490003": "Success (with warning)"
    });
union traces
| where message startswith "Integration Log added for"
| extend
    CorrelationId = tostring(customDimensions['prop__CorrelationId']),
    EntityName = tostring(customDimensions['prop__EntityName']),
    EntityId = tostring(customDimensions['prop__EntityId']),
    IntegrationStatus = IntegrationStatusMap[tostring(customDimensions['prop__IntegrationStatus'])],
    OperationType = tostring(customDimensions['prop__OperationType']),
    IntegrationCategory = tostring(customDimensions['prop__IntegrationCategory']),
    IntegrationSubCategory = tostring(customDimensions['prop__IntegrationSubCategory']),
    StartDateTime = todatetime(customDimensions['prop__StartDateTime']),
    EndDateTime = todatetime(customDimensions['prop__EndDateTime'])
| project
    CorrelationId,
    EntityName,
    EntityId,
    IntegrationStatus,
    IntegrationCategory,
    IntegrationSubCategory,
    OperationType,
    StartDateTime,
    EndDateTime,
    timeTaken = datetime_diff('millisecond', EndDateTime, StartDateTime)
| where IntegrationCategory == 'Student-Reach Pull Integration'
| summarize
    RunCount = count(),
    SuccessCount = countif(IntegrationStatus == 'Success'),
    FailedCount = countif(IntegrationStatus == 'Failed'),
    WarningCount = countif(IntegrationStatus == 'Success (with warning)'),
    PendingCount = countif(IntegrationStatus == ''),
    SuccessRate = (countif(IntegrationStatus in('Success', 'Success (with warning)')) * 100) / count(),
    AvgRunTime = avg(timeTaken)
    by EntityName

Steps to View the Application Insights for Student Integration Flows

Login to https://portal.azure.com.
Navigate to the required environment and click Monitor > Logs.
On the right side, in the Query editor add the query snippet for the required flow. Use the query snippet from the Query Snippets for Generating Application Insights for the Student Integration Flows section.
click Run.

The Application Insight for the Flows will be generated and displayed.

The following images illustrate the Application Insights generated for each type of Integration Flow:

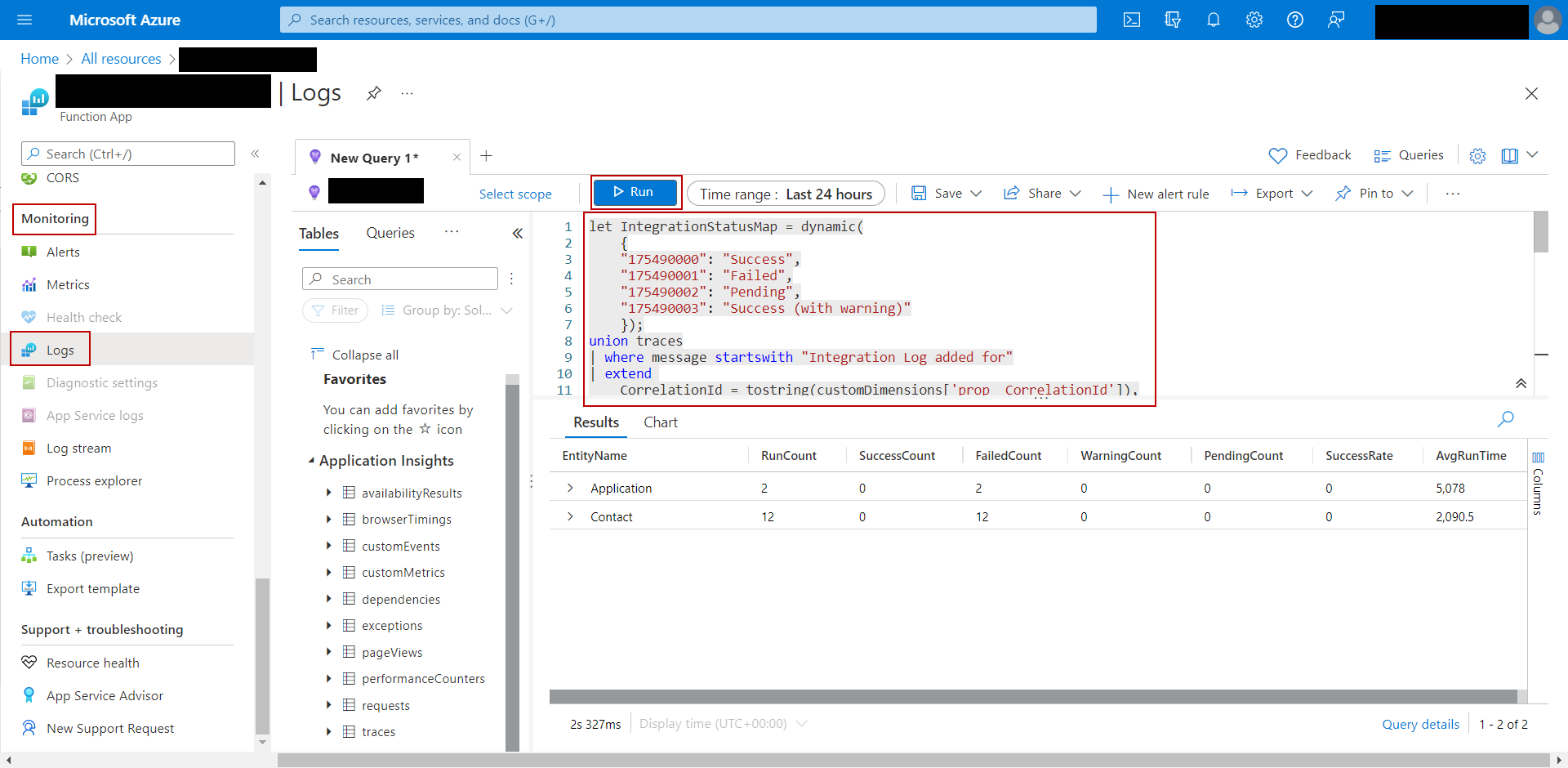

Anthology Student to Anthology Reach (CNS-CNE) Flows

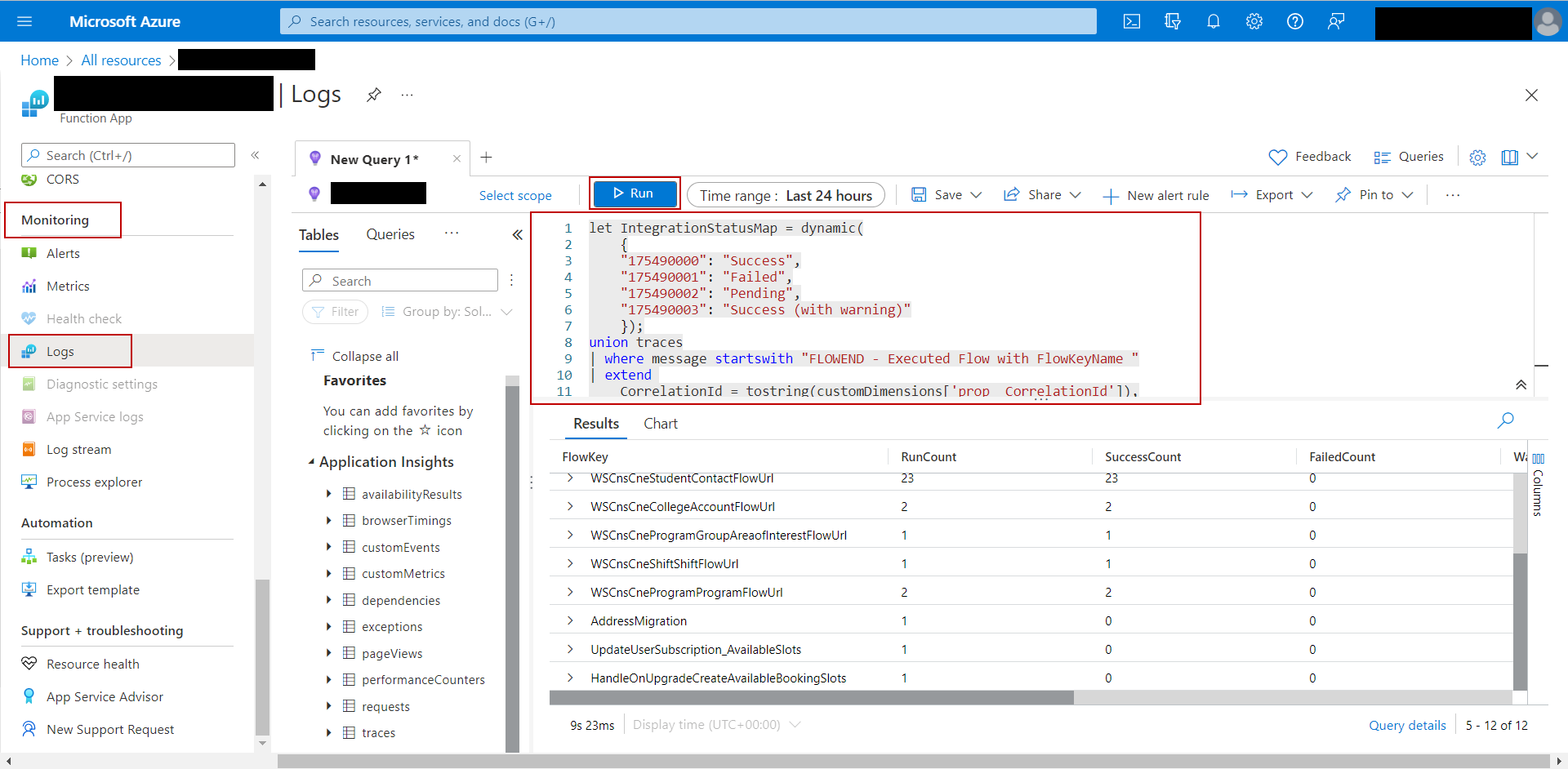

Anthology Reach to Anthology Student (CNE-CNS) Flows
Pull Based Flows Student Integration Flows
